Creating and Registering a Plugin for OIM Using JDeveloper

This post is inspired by:
http://deepakdubeyontech.blogspot.com/2014/05/oim-11g-r2-ps2-notify-user-id-to-user.html

In this post, step-by-step instructions are given on how to create a custom component so that it can be registered to OIM 11gR2 PS2 or PS3.

Start JDeveloper

Select Java EE Edition and click OK



Click New Application



Take the defaults and click Next



Give it a name, say Client2 and click Next

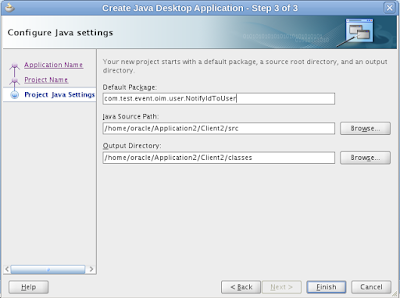

Give your default package a name such as com.test.event.oim.user.NotifyUserIdToUser and click Finish

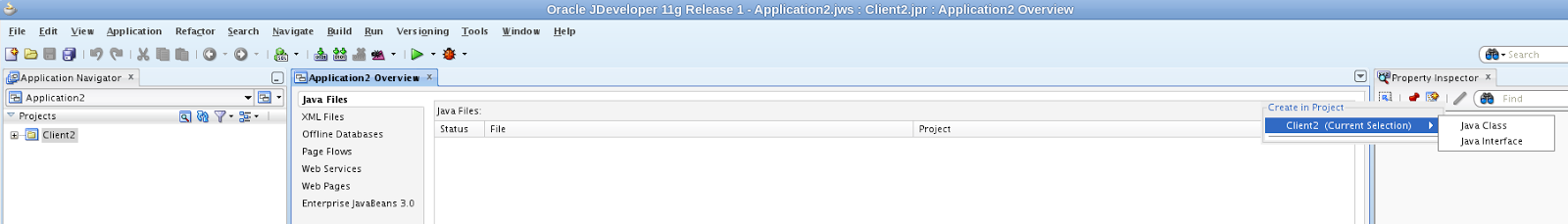

Click click the green '+' icon and Create in Project and then Java Class



Name your class e.g. NotifyUserIdToUser and click OK



Your screen should look like this:


Copy and paste this code into your new class:

package com.test.event.oim.user;

import static oracle.iam.identity.usermgmt.api.UserManagerConstants.AttributeName.MANAGER_KEY;
import static oracle.iam.identity.usermgmt.api.UserManagerConstants.AttributeName.USER_LOGIN;

import java.io.Serializable;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.HashSet;
import java.util.List;
import java.util.Set;

import oracle.iam.identity.exception.NoSuchUserException;
import oracle.iam.identity.exception.UserLookupException;
import oracle.iam.identity.usermgmt.api.UserManager;
import oracle.iam.identity.usermgmt.vo.User;
import oracle.iam.notification.api.NotificationService;
import oracle.iam.notification.vo.NotificationEvent;
import oracle.iam.platform.Platform;
import oracle.iam.platform.authz.exception.AccessDeniedException;
import oracle.iam.platform.kernel.spi.PostProcessHandler;
import oracle.iam.platform.kernel.vo.AbstractGenericOrchestration;
import oracle.iam.platform.kernel.vo.BulkEventResult;
import oracle.iam.platform.kernel.vo.BulkOrchestration;
import oracle.iam.platform.kernel.vo.EventResult;
import oracle.iam.platform.kernel.vo.Orchestration;

import java.util.logging.Logger;

public class NotifyUserIdToUser implements PostProcessHandler {

        private static final Logger log = Logger.getLogger( NotifyUserIdToUser.class.getName() );
        public EventResult execute(long processId, long eventId,
                Orchestration orchestration) {
                return new EventResult();
        }


        private NotificationEvent createNotificationEvent(String poTemplateName,
                        String userKey) {
                NotificationEvent event = null;
                try {
                        event = new NotificationEvent();
                        String[] receiverUserIds = getRecipientUserIds(userKey);
                        event.setUserIds(receiverUserIds);
                        event.setTemplateName(poTemplateName);
                        event.setSender(null);
                        HashMap<String, Object> templateParams = new HashMap<String, Object>();
                        templateParams.put("usr_key", userKey);
                        event.setParams(templateParams);
                        log.info("Template Name " + poTemplateName);
                } catch (Exception e) {
                        e.printStackTrace();
                        System.out.println("e-------->" + e.getMessage());
                }
                return event;
        }

        @Override
        public void initialize(HashMap<String, String> arg0) {
        }

        @Override
        public boolean cancel(long arg0, long arg1,
                        AbstractGenericOrchestration arg2) {
                return false;
        }

        @Override
        public void compensate(long arg0, long arg1,
                        AbstractGenericOrchestration arg2) {

        }

        @Override
        public BulkEventResult execute(long l, long l1, BulkOrchestration bulkOrch) {
                try {
                        System.out.println("Entering  BulkEventResult of NotifyUserIDToUser");
                        System.out.println("l ->" + l);
                        System.out.println("l1 ->" + l1);
                        String oprType = bulkOrch.getOperation();
                        System.out.println("oprType ->" + oprType);
                        HashMap<String, Serializable>[] bulkParams = bulkOrch
                                        .getBulkParameters();
                        for (HashMap<String, Serializable> bulkParam : bulkParams) {
                                System.out.println("bulkParam ->" + bulkParam);
                                Set<String> bulkKeySet = bulkParam.keySet();
                                System.out.println("bulkKeySet ->" + bulkKeySet);
                                String usrLogin = null;
                                String usrKey = null;
                                for (String key : bulkKeySet) {
                                        System.out.println("key ->" + key);
                                        Serializable serializable = bulkParam.get(key);
                                        System.out.println("serializable ->" + serializable);
                                        if (key.equalsIgnoreCase("User Login")) {
                                                usrLogin = serializable.toString();
                                                System.out.println("usrLogin ->" + usrLogin);
                                                UserManager usrMgr = Platform
                                                                .getService(UserManager.class);

                                                User user = usrMgr.getDetails(usrLogin, null, true);
                                                usrKey = user.getEntityId(); // getAttribute("usr_key").toString();
                                                String uid = user.getId();
                                                System.out.println("uid--->" + uid);
                                                System.out.println("usrKey ->" + usrKey);
                                                String templateName = "Notify UserId to User";
                                                NotificationService notService = Platform
                                                                .getService(NotificationService.class);
                                                NotificationEvent eventToSend = this
                                                                .createNotificationEvent(templateName, usrKey);
                                                notService.notify(eventToSend);

                                        }

                                }
                        }
                } catch (Exception e) {
                        System.out.println("exception e in BulkExecuteEvent ->"
                                        + e.getMessage());
                        e.printStackTrace();
                }
                System.out.println("Exiting  BulkEventResult of NotifyUserIDToUser");
                return new BulkEventResult();
        }

        private String[] getRecipientUserIds(String userKey)
                        throws NoSuchUserException, UserLookupException,
                        AccessDeniedException {
                UserManager usrMgr = Platform.getService(UserManager.class);
                User user = null;
                String userId = null;
                Set<String> userRetAttrs = new HashSet<String>();
                userRetAttrs.add(MANAGER_KEY.getId());
                userRetAttrs.add(USER_LOGIN.getId());
                User manager = null;
                String managerId = null;
                String managerKey = null;
                Set<String> managerRetAttrs = new HashSet<String>();
                managerRetAttrs.add(USER_LOGIN.getId());
                user = usrMgr.getDetails(userKey, userRetAttrs, false);
                userId = user.getAttribute(USER_LOGIN.getId()).toString();
                List<String> userIds = new ArrayList<String>();
                userIds.add(userId);
                if (user.getAttribute(MANAGER_KEY.getId()) != null) {
                        managerKey = user.getAttribute(MANAGER_KEY.getId()).toString();
                        manager = usrMgr.getDetails(managerKey, managerRetAttrs, false);
                        managerId = manager.getAttribute(USER_LOGIN.getId()).toString();
                        userIds.add(managerId);
                }
                String[] recipientIDs = userIds.toArray(new String[0]);
                return recipientIDs;
        }

 }

Your JDeveloper screen should look like this:


Notice the red bars on the right which indicate missing jar files.  Try and compile the program selecting Build -> Make Client2.jpr


The compiler log pane will display errors as shown below:



To fix these, we need to modify the class path so that the relevant libraries and jar files can be included.  To do this, in the Application Navigator, right click on Client and from the pop-up menu, select Project Properties:



From the Project Properties menu, select Libraries and Classpath:


Click on the Add JAR/Directory:



Most of the required jars will be in your $IDM_HOME/server which in this case is $IDM_HOME=/app/fmw/Oracle_IDM1/server.  In the Add Archive or Directory pop up, enter /app/fmw/Oracle_IDM1/server/client/oimclient.jar and click Select.  See below:


The following will be displayed:


Repeat the above for the following jar files:
$IDM_HOME/server/platform/iam-platform-kernel.jar
$IDM_HOME/server/platform/iam-platform-context.jar

Your Project Properties -> Libraries and Classpath should look like this:


Click Build -> Rebuild Client2.jpr (or whatever your project is called).  You should get a clean build with no errors:


Source and class files will be located here:

/home/oracle/Application2/Client2/classes
/home/oracle/Application2/Client2/src

Next, we are ready to create the jar file and use Ant to register the plugin to OIM.

Set your ant and OIM environment variable and place your ant variable in the path:
# e.g. IDM_HOME=/app/fmw/Oracle_IDM1
OIM_ORACLE_HOME=$IDM_HOME
ANT_HOME=$MW_HOME/modules/org.apache.ant_17.1
export PATH=$PATH:$ANT_HOME/bin
export ORACLE_OIM_HOME

Create a plugins directory, say /home/oracle/oim_plugins

cd /home/oracle/oim_plugins
mkdir -p stage/custom/lib

Copy class files from /home/oracle/Application2/Client2/classes to /home/oracle/oim_plugins/stage/lib as follows:

cd /home/oracle/oim_plugins/stage/custom/lib
cp -rfp /home/oracle/Application2/Client2/classes .

Create a plugin.xml file:

<?xml version="1.0" encoding="UTF-8"?>
<oimplugins>
  <plugins pluginpoint="oracle.iam.platform.kernel.spi.EventHandler">
      <plugin pluginclass=
              "com.test.event.oim.user.NotifyUserIDToUser"
               version="1.0"
               name="NotifyUserIDToUser">
      </plugin>
  </plugins>
</oimplugins>


Next, create a zip archive:

zip -r NotifyUser.zip lib plugin.xml

You are now ready for registering your custom component into OIM.

cd $IDM_HOME/server/plugin_utility

Register the plugin:

ant -f pluginregistration.xml register

Buildfile: pluginregistration.xml

register:
     [echo]
     [echo] *******************************************************************************
     [echo]             REGISTRATION TOOL TO REGISTER
     [echo] *******************************************************************************
     [echo] This tool can be used to register or unregister plugins to OIM.
     [echo]
...

...
...
    [input] Enter the oim user id:
xelsysadm
    [input]Enter the oim user password:

    [input] Enter the server url [WLS : t3://<host>:<port> WAS : corbaloc:iiop:<host>:<port> )]:
t3://localhost:14000
    [input] Enter name (complete file name with path) of the plugin file:
/home/oracle/oim_plugins_ins/stage/custom/NotifyUser.zip

-register-to-was-server:

-register-to-wls-server:

...
...
...
BUILD SUCCESSFUL
Total time: 1 minute 37 seconds


Check for errors in the output.  If there are no error, your plugin should now be registered and ready for use.
